Ⅰ. Product Specification and Parameters

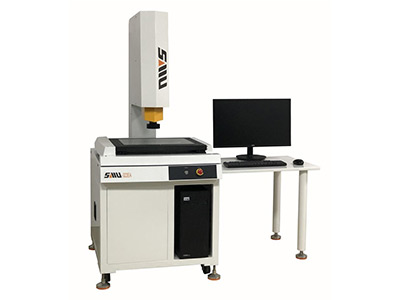

Model/Specification Parameters | SMU-4030EA(2.5D) | |
Workbench | X/Y axis stroke | 400mm ╳ 300mm |
Z axis stroke | Focusing stroke: 200mm,working distance: 90mm | |
Size of marble countertop | 560mm ╳ 460mm | |
Size of glass countertop | 450mm ╳ 350mm | |
Transmission type | X/Y axis:high precision cross drive guide rail + screw Z axis: Linear guide rail + screw imported bearings for X/Y/Z axis | |
Grating scale resolution | X/Y/Z axis:0.001mm | |
Linear accuracy of XY measurement | 3+L/200(μm) | |
Accuracy of XY repeatability | 0.003mm | |
Driving motor | High performance CNC servo motor | |
Camera | Gigabit network color industrial digital camera | |
Measurement software | Automatic vision measuring software with simple programming, easy to use (Measurement data can be exported or imported into MES and QMS system according to the report format of customer) | |
Lens | Automatic zoom lens Optical magnification: 0.7-4.5X, image magnification: 20-128X The magnification of 10-64X/40-256X can be realized by optional 0.5X/2X objective. | |
Option | Keyence LK-G30 laser | |
Renishaw MCP point gauge set | ||
Illumination system | Surface:5-ring 8-division LED cold illumination, with long service life and adjustable brightness (255 levels) | |
Contour:LED white cold illumination, with long service life and adjustable brightness (255 levels) | ||
Overall dimension(L*W*H) | 950mm ╳ 1600mm ╳ 1600mm | |
Weight | 200kg |
Ⅱ. Working Environment
1. Temperature and humidity
Temperature:20-25℃,optimal temperature:22℃; relative humidity:50%-60%,optimal relative humidity:55%; Maximum temperature change rate in the machine room:10℃/h; It is recommended to use a humidifier in dry area, and use a dehumidifier in humid area.
2. Heat calculation in the workshop:
·Keep the machine system in the workshop operating in the optimum temperature and humidity, and the total indoor heat dissipation must be calculated, including the total heat dissipation of indoor equipment and instruments (lights and general lighting can be ignored)
·Heat dissipation of human body:600BTY/h/person
·Heat dissipation of workshop:5/m2
·Instrument placement space(L*W*H):2000mm ╳ 2200mm ╳ 2000mm
3. Dust content of air:
The machine room shall be kept clean, and the impurities greater than 0.5mlxpov in the air shall not exceed 45000 per cubic foot. If there is too much dust in the air, it is easy to cause resource read and write errors and damage to the disk or read-write heads in the disk drive.
4. Vibration degree of machine room:
The vibration degree of machine room shall not exceed 0.5T. Machines that vibrate in the machine room shall not be placed together, because the vibration will loosen the mechanical parts, joints and contact parts of the host panel, resulting in abnormal operation of the machine.
Ⅲ. Power
AC220V/50HZ AC110V/60HZ
